Prescale High 5-Sheet Pack - Pressure Indicating Film
Prescale High 5-Sheet Pack - Pressure Indicating Film
Couldn't load pickup availability
Tax excl.
HS-PS
New product

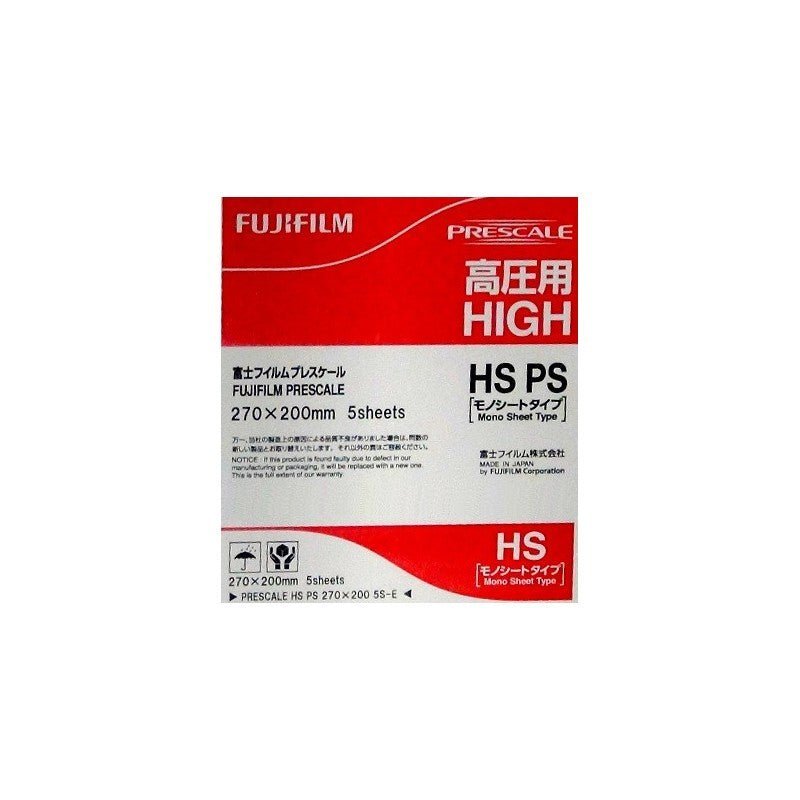

Fujifilm Prescale High pressure indicating film, sheet pack, for 7110-18500 psi
DATA SHEET
| Manufacturer | Fujifilm - Value From Innovation Since 1936 |
| Manufacturer Part Number | HS-PS |
| Pressure Range | HS High: 7110-18500 psi (50-130 MPa) |
| Sold By | Sheet Pack (5 sheets) |
| Analysis | Visual and Digital |
| Visual Analysis: Calibration Chart | Included at no charge, full color for easy visual analysis |
| Digital Analysis: Scanning Service | Included at no charge, just call, send in your sample, and we will digitize, analyze, and email you the results (a $45 value FREE) |
| Digital Analysis: Hardware | Compatible with Fujifilm FPD-8010E Digital Analysis & Mapping System |
| Extreme Temperature Option | Compatible with metricSHIELD protective film, for testing from -200F to +700F (-130C to +370C) |
| Width | 8 in (200 mm) |
| Length | 10.5 in (270 mm) |
| Thickness | 4 mils |
| Cutting | Prescale is easy to cut using sharp scissors or a cutting board. |
| Layers | Monosheet Type - film is in a single ply |
MORE INFO
Fujifilm Prescale pressure indicating film from Pressure Metrics lets you Picture The Pressure® with visually stunning images of surface pressure and pressure distribution. High film works from 7,110 to 18,500 psi (50 to 130 MPa). Images may be analyzed visually with a color correlation chart, which is always included at no additional charge. For greater precision and surface mapping applications, Prescale is compatible with the very cost-effective Fujifilm FPD-8010E system. We are pleased to offer one free digital image analysis with each purchase: simply send us your exposed film, and we will digitize, analyze, and return an analysis to you by email, often within just a few days. This is how Pressure Metrics helps you Picture The Pressure®.
A sheet pack consists of five (5) sheets; each is 8 in x 10.5 in (200 mm x 270 mm).F
