LLW-R270 Prescale Super Low Roll - Pressure Indicating Film
LLW-R270 Prescale Super Low Roll - Pressure Indicating Film
Couldn't load pickup availability
Tax excl.
LLW-R270
New product

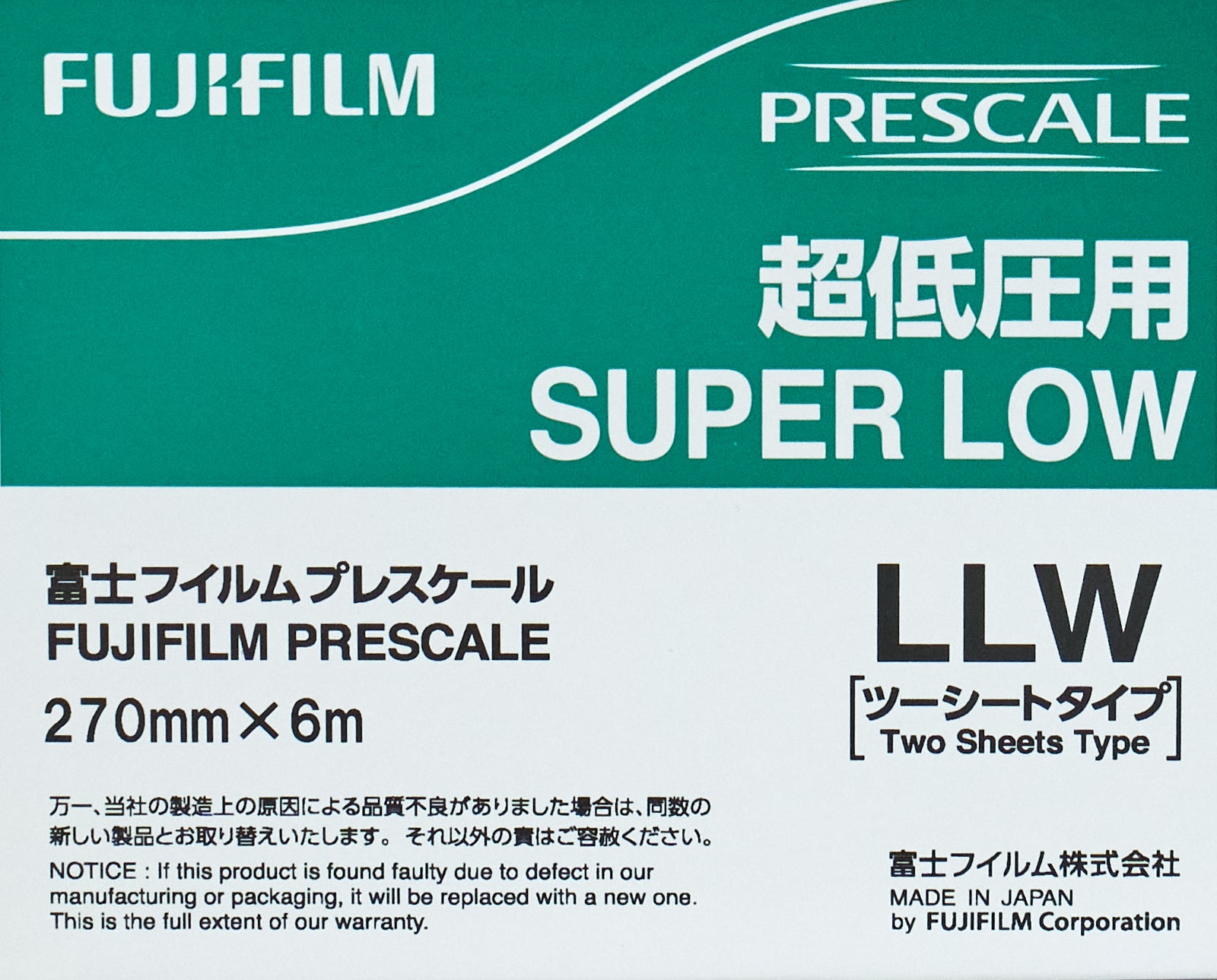

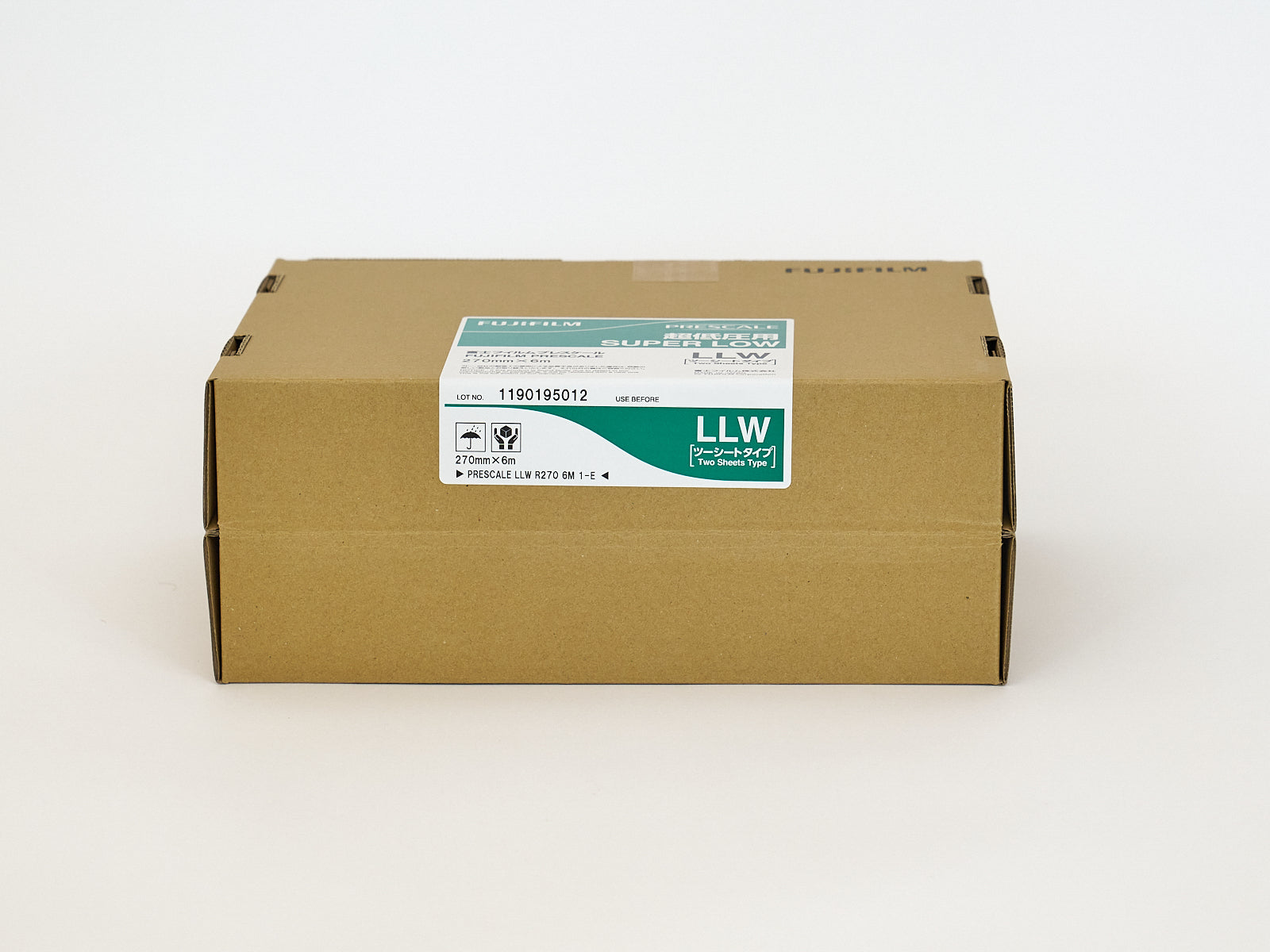

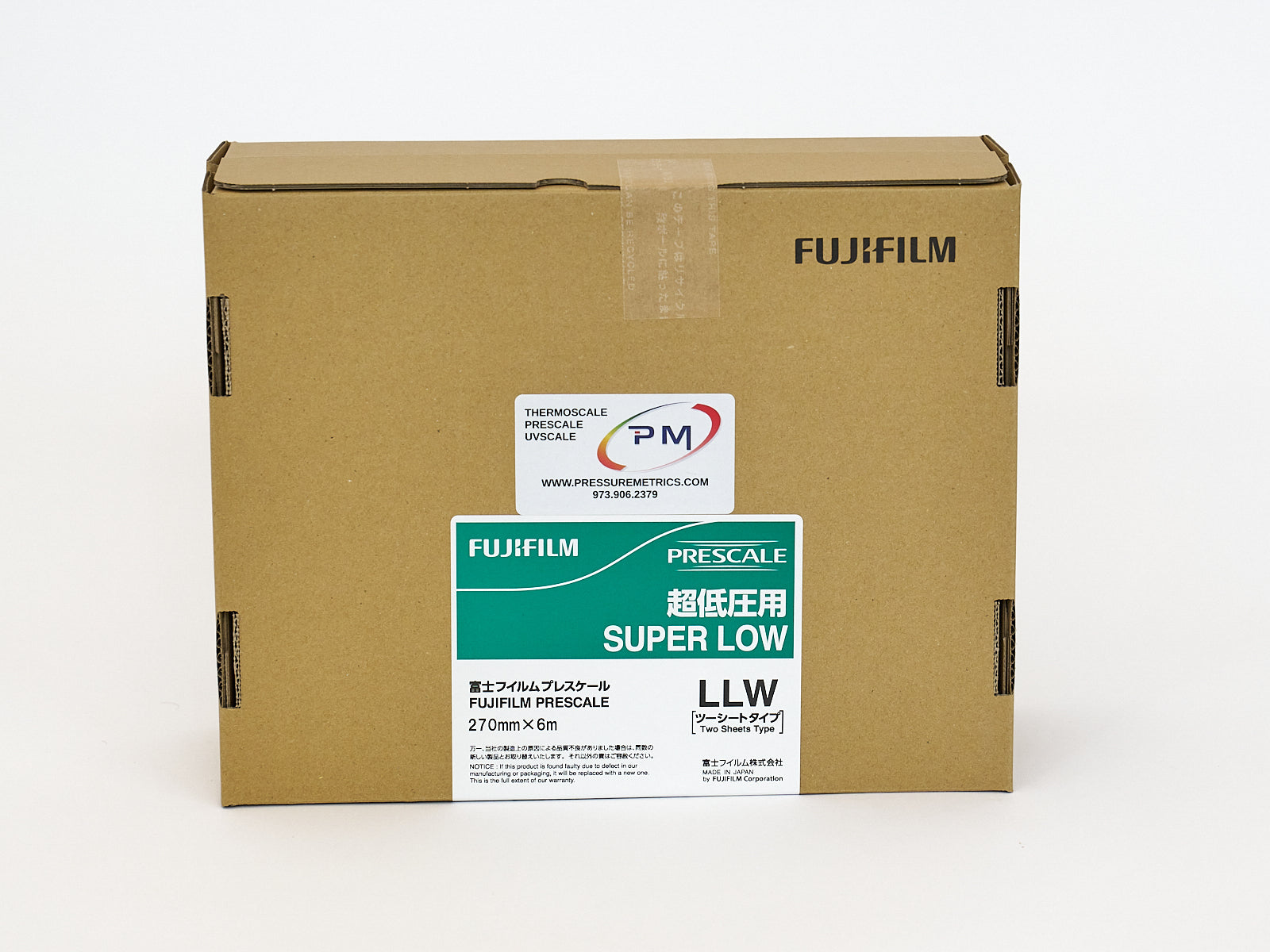

Fujifilm Prescale Super Low pressure indicating film, Roll, for 71-355 psi
Price(USD)
| Quantity | Price |
|---|---|
| 1 | $605.00 |
| 2 | $575.00 |
DATA SHEET
| Manufacturer | Fujifilm - Value From Innovation Since 1936 |
| Manufacturer Part Number | LLW-R270 |
| Pressure Range | LLW Super Low: 71-355 psi (0.5-2.5 MPa) |
| Sold By | Roll |
| Analysis | Visual and Digital |
| Visual Analysis: Calibration Chart | Included at no charge, full color for easy visual analysis |
| Digital Analysis: Scanning Service | Included at no charge, just call, send in your sample, and we will digitize, analyze, and email you the results (a $45 value FREE) |
| Digital Analysis: Hardware | Compatible with Fujifilm FPD-8010E Digital Analysis & Mapping System |
| Extreme Temperature Option | Compatible with metricSHIELD protective film, for testing from -200F to +700F (-130C to +370C) |
| Quantity Discounts | Yes - with purchase of 2+ rolls |
| Width | 10.5 in (270 mm) |
| Length | 19 ft (6 m) |
| Thickness | 4 mils |
| Cutting | Prescale is easy to cut using sharp scissors or a cutting board. |
| Nip Impressions | Our free roll slitting service is ideal for nip impressions. We can cut your Prescale roll lengthwise into thirds. This triples the value for frequent, economical testing of industrial nip pressure. Call us at 1-866-963-2392 for more information. |
| Slitting Service | No charge, upon request. We are happy to slit Prescale along the length of the roll. If your need is for a narrower film, this enables you to use Prescale more efficiently. Please call for details and delivery times. |
| Layers | Dual Sheet Type - film is 2-ply, simply place matte sides together |
MORE INFO
Fujifilm Prescale pressure indicating film from Pressure Metrics lets you Picture The Pressure® with visually stunning images of surface pressure and pressure distribution. Super Low film works from 71 to 355 psi (0.5 to 2.5 MPa). Images may be analyzed visually with a color correlation chart, which is always included at no additional charge. For greater precision and surface mapping applications, Prescale is compatible with the very cost-effective Fujifilm FPD-8010E system. We are pleased to offer one free digital image analysis with each purchase: simply send us your exposed film, and we will digitize, analyze, and return an analysis to you by email, often within just a few days. This is how Pressure Metrics helps you Picture The Pressure®.
